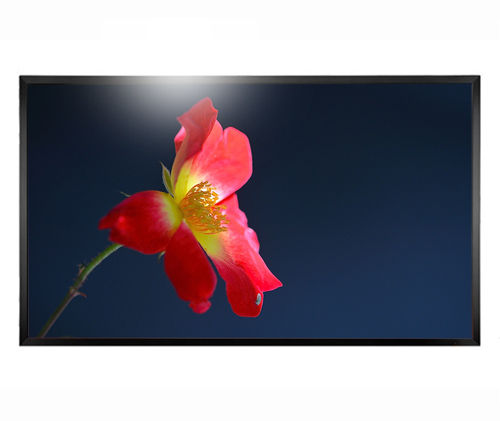

98 inch 4K Commercial LCD Monitor:
Model: ID981H, ID981HT -Multi-Touch screen commercial monitor
Overview:
Commercial monitor is also called commercial grade display, large screen display. First it is a monitor with HDMI/DVI/VGA input which is expandable to more kinds of Audio & Video input. There should be input source, such as pc, notebook and media player etc.
What’s the difference between commercial monitor and common desktop monitor?
1. Commercial monitor is for commercial and industrial usage. Therefore from the design to its functions, it focus on to meet various commercial & industrial applications. Common desktop monitor is mainly for personal computer usage.
2. Large size lcd monitor is made of industrial tft lcd panel which has wide view angle, high brightness, durable stable performance and long life time. In theory the panel life time is more than 6 years, working 24/7/365 each year. This is different for personal usage monitor.
3. Commercial LCD monitor sometimes goes with touch screen for interactive touch experience, while common desktop monitor not.
4. The size is usually more than 15.6 inch,18.5 inch,19 inch, such as 22 inch, 24 inch, 26 inch, 32 inch, 42 inch,43 inch, 46 inch,49 inch, 55 inch, 60 inch, 65 inch, 70 inch, 75 inch,80 inch, 84 inch, 86 inch,98 inch.
Main features:
1. Plug and play easy working.
2. HDMI/DVI/VGA input.
3. High definition 3840 x 2160(4K) native resolution.
4. Wide view angle, high brightness and industrial design.
5. Stable and long lifetime, can working 24/7/365 each year.
6. Standard VESA mount holes and flush mount holes.
7. LCD monitor with touch screen and open frame available for different applications.
Specifications:
|
Parameters |
||
|
Panel Data |
Panel Brand |
For Samsung/LG |
|
Size |
98 inch |
|
|
Native Resolution |
1920x1080 |
|
|
Aspect Ratio |
16:9 |
|
|
Surface |
Antireflection |
|
|
Active Area |
2158.848(H) x 1214.352(V) mm |
|
|
Dot Pitch |
0.1874(H) x 0.5622(V) mm |
|
|
Brightness |
500cd/m2 |
|
|
Contrast Ratio |
1300:1 |
|
|
Display Colors |
16.7M(8-bit) |
|
|
Response Time |
5ms |
|
|
View Angle |
89/89/89/89(L/R/U/D) |
|
|
Life time |
60000 hours |
|
|
General Information |
Material |
Fine Aluminum + Tempered glass 4mm |
|
Main I/O port |
HDMI x 1 |
|
|
DVI x 1 |
||
|
VGAx 1 |
||
|
Resolution supported |
640x480,720x480,720x576,800x600,1024x768,1280x720,1280x960,1280x1024 1366x768,1440x900,1680x1050,1920x1080, 3840x2160 |
|
|
Color |
Silver, Black, White or Customized |
|
|
Speaker |
5W/10W x2(optional) |
|
|
Control way |
IR Remote Control |
|
|
Menu Language |
English, Germany, Russian, French and Spanish etc |
|
|
Power Supply |
AC 110 ~ 240V |
|
|
Operation Temperature |
0 ℃~40℃ |
|
|
Operation Humidity |
20% ~ 80% |
|
|
Operating Altitude |
0~3,000 meters |
|
|
Touch Screen |
Touch technology |
Infrared Touch |
|
Touch point |
2 point, 6 point, 10 point, 16 point, 20 point, 32 point, 40 point, 50 point, 100 point. |
|
|
Touch method |
Finger,pen or non-transparent object |
|
|
Resolution |
4096 x 4096 |
|
|
Positioning accuracy |
±1.5mm |
|
|
Touch life time |
Unlimited |
|
|
Anti-light Interference |
Yes |
|
|
Waterproof |
Optional |
|
|
OS Compatible |
Win 2000/XP/Win 7/Win 8/Vista/Limux/MAC/Android |
|
Remarks: The product is subject to change without notice in advance.
