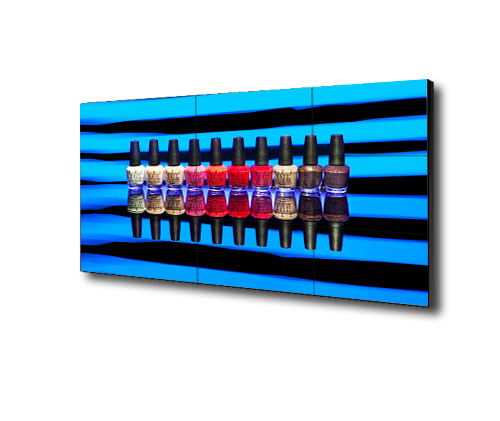

46 Inch HD LCD Video Wall:

Model No.: ID46EB - 46 inch high brightness 700 nits video wall display

lcd video wall

High Brightness LCD Video wall(LED backlight) is used to present information in large scale size screen. For example, in the robot manufacturing control room the work wants to know the real producing status in a certain production line. The information is presented on a wall display. The display area is about 10 meters X 3 meters. There are 60 on-site cameras. Each camera catch the situation of each working site. How to realize this need?
The video wall can do this. For the 10 meters X 3 meters display wall, it can be divided into 60 sub-screen windows(each sub-screen is a single display). Input 60 signals from the camera into the video wall(60 displays). Now you can see the 60 working sites on the video wall. If you want to see clearly the situation in one working site, just choose the corresponding display and then the whole area of the video wall only shows this single display window. It is 10 meters X 3 meters. How clear it is! The most important is that the gap between two displays is pretty narrow, which doesn’t decrease the view effect by viewing from more than 3 meters away..

The video wall can be LCD display, DLP display or PDP display. Below are the main features of LCD Display.

Main Features:

1. Super high brightness video wall display up to 700 nits which is ideally for bright environment rooms.

2. Super narrow seamless lcd video wall, gap(between two displays) is from the original tens of millimeters to current millimeters levers , as narrow as 5.5mm.
It is said Samsung will release 3.5mm display in 2014. If that comes true, it will be a ground-breaking improvement of lcd video wall.
3. High brightness and high contrast. The brightness is 700cd/m2 which can meet the demands of various kinds of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
4. LED backlight. It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-produce picture vividly and in the original color.

5. The picture on the video wall is uniform because of led backlight and light compensation point technology.

***Available size: 46 inch, 55 inch for optional.


Panel Data Panel Brand For Samsung
Size 46 inch
Native Resolution 1920x1080
Aspect Ratio 16:9
Surface Antiglare
Active Area 1018.08(H) x 572.67(V) mm
Dot Pitch 0.17675(H) x 0.53025(V) mm
Brightness 700cd/m2(high brightness video wall unit)
Contrast Ratio 3000:1
Display Colors 16.7M
Response Time 8ms
View Angle 89/89/89/89(L/R/U/D)
Frequency 60Hz
General Information Bezel-to-bezel width 5.3mm
Inputs VGA x1
DVI x1
Video/Audio x1
RS232 x1
Outputs RS232 x1
Optional DP in/DP out
Image Resolution 5000 x 5000 px Max
Video Resolution 1920 x 1080p Max
Menu Language English, Germany, Russian, French and Spanish etc
Power Supply AC 110 ~ 240V
Operation Temperature 0~40
Operation Humidity 20% ~ 80%
Operating Altitude 0~3,000 meters
Storage Temperature -20~60
Storage Humidity 0 ~ 90%
Installation On the wall, on the floor, in the cabinet.

Remarks: The product is subject to change without notice in advance.
